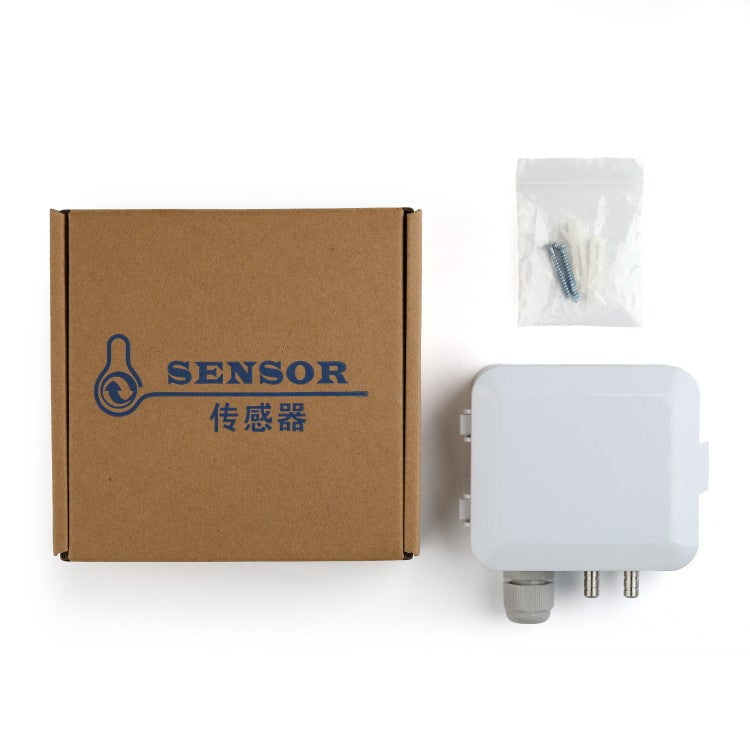

AFM600

Name: AFM600
Brand: 我的商店
Availability: OutOfStock

$0.00 USD

促销售罄

数量

1.Features

■Imported micro-pressure core, sensitive

pressure response

■Digital pressure acquisition and temperature

compensation

■Strong stability and long service life

■Measures precise pressure and flow required for

building pressurization and air flow control

2.Overview

This product is suitable for HVAC, energy management systems, VAV and fan control, environmental pollution control static pipeline and clean room pressure, smoke hood control, oven pressurization and furnace ventilation control.

The AFM600 pressure sensor detects differential pressure or gauge pressure and converts this pressure difference into a proportional electrical signal output. AFM600 has an analog output of 0~5/10Vdc or 4~20mA and is used in building energy management systems. This sensor can measure the precise pressure and flow required for building pressurization and air flow control.

AFM600 uses an imported pressure core, which has the characteristics of sensitive pressure response, long-term stable output, and excellent temperature performance.

3.Technical parameters

Pressure range	0~±100Pa, 0~±1,000Pa, 0~±10,000Pa
Overload pressure	5 times the rated pressure
Accuracy	± 1%F.S
stability	Typical value: 0.1%F.S Maximum value 0.2%F.S
storage temperature	-20℃~70℃
Compensation temperature	-10℃~60℃
Protection level	IP54
Electrical connections	two-tier system	three-wire system	four wire system	five-wire system
Output signal	4-20mA	0~5V 0~10V	RS485	0~10VDC RS485
power supply	10~30VDC	16~30VDC	12~30VDC	16~30VDC
External load	0~5/10VDC\≥50K Ω 4-20mA\≤250 Ω
Power consumption	≤1.5W
Pressure port	Metal barb interface, Ø6.2mm
Shell material	UL94-V0/ABSIndustrial plastics
Communication	RS-485 standard interface, ModbusRTU protocol
response time	0.5s/1.0s/2s/4s
Cable connector	Maximum cable diameter Ø8mm

3.Overall dimensions

4.Selection instructions

Code and Description						Remark
AFM600						model
	101D	101D=0±100Pa		101G	101G=0-100Pa	Measuring range (G means unidirectional, D means bidirectional, 101 means 10*101)
	102D	102D=0±1000Pa		102G	102G=0-1000Pa
	251D	251D=0±250Pa		202G	202G=0-2000Pa
	252D	252D=0±2500Pa		103G	103G=0-10000Pa
	051D	051DD=0±50Pa		251G	251G=0-250Pa
	501D	501D=0±500Pa		252G	252G=0-2500Pa
	502D	502D=0±5000Pa		501G	501G=0-500Pa
	103D	103D=0±10000Pa		502G	502G=0-5000Pa
		AL	4~20mA			Output type
		VL	0~10V
		VZ	0~5V
		MOD	RS485

AFM600 101G AL							Selection example

5.Detailed function explanation

1．Analog output

AFM600 can choose voltage type (0～5/10VDC) and current type (4～20mA) output mode. The voltage type is a three-wire output, which needs to be wired according to the mark; the current type is a two-wire output, which has no polarity and can be arbitrarily replaced.

2．Clear button

Use this button to calibrate the zero pressure value when the pressure difference between the positive and negative pressure inlets is zero (the LED lights up simultaneously when pressed).

3．Output response time setting

Set the output response time by turning the DIP switch to the following state:

6.Installation method

First, use the ruler on the back to mark the installation hole position on the wall, drill a 30mm deep Ø6mm wall hole to place the expansion tube (self-tapping screws and expansion tubes are provided with the goods), then open the differential pressure transmitter buckle, open the cover, and fix the self-tapping screws (ST3.5×25) to the specified position on the wall through the fixing hole of the differential pressure transmitter, connect the inlet and outlet wires through the waterproof connector, and finally cover the cover.
