AS105

1. Product overview:

This display is mainly used as a temperature and humidity display for home or personal use. It has the characteristics of fast response, high measurement accuracy, good stability, and strong practicability.

2. Product size:

Product size chart (unit: mm)

3. Technical parameters:

1. Instrument operating temperature: -10℃~50℃ (external probe -40℃~80℃)
2.  Temperature accuracy: ±0.5℃(25℃)
3. Temperature unit: ℃ (Celsius)/℉ (Fahrenheit)
4. Humidity measurement range: 0~99.9%RH Humidity accuracy: ±3%RH
5. Resolution: temperature 0.1℃; humidity 0.1%RH
6. Sensitivity attenuation value: Temperature: <0.1℃/year Humidity: <1%RH/year
7. Power supply voltage: Battery: 3.7V; USB: 5V
8. Power supply: built-in lithium battery (rechargeable)
9. Battery life: Under normal circumstances, if no buttons are operated and the buzzer is disabled, it can be used for at least one year on a full charge;
10. Operating environment temperature: -20℃~+60℃; in low temperature environment, the LCD response will be relatively slow, but it will have no impact on normal measurement. Once the temperature recovers, the display will display normally and the LCD screen will never sleep.

4. Function description:

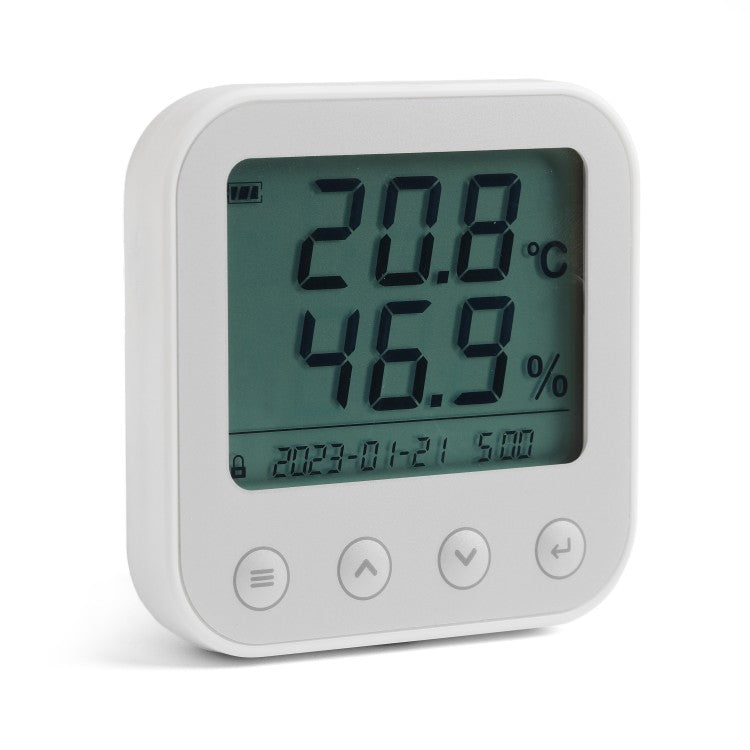

AS105 display interface: temperature display, humidity display, time display, date display, minimum temperature value display, maximum temperature value display, minimum humidity value display, maximum humidity value display, power display, alarm sign display, screen lock sign display.

Displays various parameters on the instrument and can be set manually. Factory default: alarm off, Celsius display. When the USB data cable is connected, the battery will be charged automatically and will turn off automatically when full.
