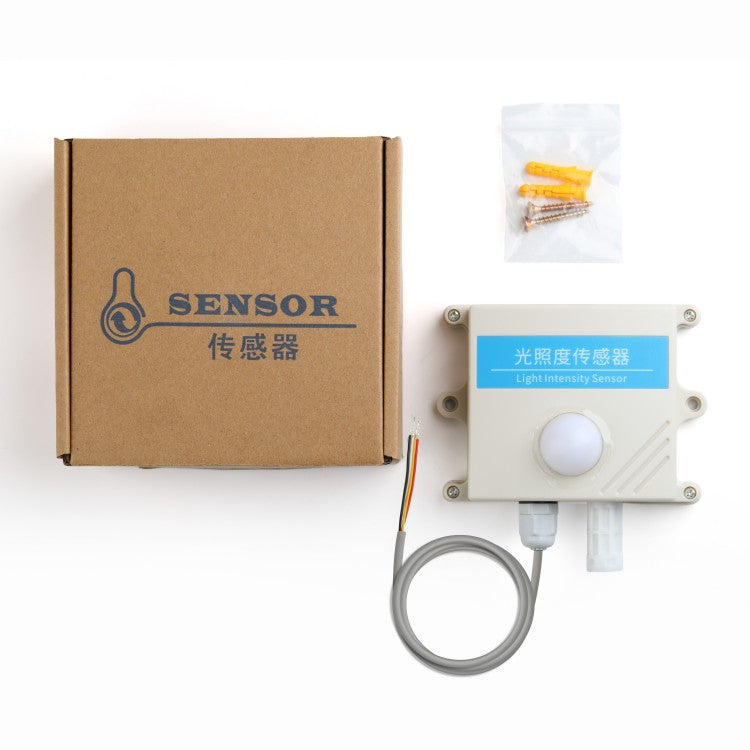

AY300-GZ-RS
AY300-GZ-RS
无法加载取货服务可用情况
1.1 Product overview
This transmitter is widely used in agricultural greenhouses, flower cultivation and other occasions that require illumination, temperature and humidity monitoring. The input power supply, induction probe and signal output parts of the sensor are completely isolated. Safe and reliable, beautiful in appearance and easy to install.
1.2 Features
This product uses a high-sensitivity photosensitive probe with stable signal and high precision. It has the characteristics of wide measuring range, good linearity, good waterproof performance, easy use, easy installation, and long transmission distance.
1.3 Main parameters
|
DC power supply (default) |
10-30VDC |
|
|
Maximum power consumption |
0.4W |
|
|
Accuracy |
humidity |
±3%RH(60%RH,25℃) |
|
temperature |
±0.5℃（25℃) |
|
|
Light intensity |
±5%(25℃) |
|
|
Light intensity range |
0-65535Lux；0-20 Ten thousand Lux Remarks required |
|
|
Temperature and humidity range |
-40℃~+60℃ , 0%RH~95%RH |
|
|
long term stability |
temperature |
≤0.1℃/y |
|
humidity |
≤1%/y |
|
|
light intensity |
≤5%/y |
|
|
response time |
temperature |
≤18s(1m/swind speed) |
|
humidity |
≤6s(1m/swind speed) |
|
|
light intensity |
0.1s |
|
|
Output signal |
485(Modbusprotocol) |
|
Overall size：110×85×44mm
2.1 Equipment inspection before installation
Equipment list：
■ 1 transmitter device
■ USB to 485 (optional)
■ Certificate of conformity, warranty card
2.2 Interface description
The power interface is a wide voltage power input of 10-30V. When wiring the 485 signal line, pay attention to the fact that the A\B lines cannot be connected in reverse, and the addresses of multiple devices on the bus cannot conflict.
2.2.1 Sensor wiring
|
|
Thread color |
illustrate |
|
power supply |
red (brown） |
Power supply positive（10~30V DC） |
|
black |
Negative power supply |
|
|
communication |
yellow |
485-A |
|
white (blue) |
485-B |
2.3 Installation method
1.1 Product selection
|
AY- |
|
Company code |
|||
|
|
300- |
|
Wall hanging king shell |
||
|
|
GZ- |
|
illumination |
||
|
|
RS |
|
485communication |
||
|
-RH |
|
Temperature, humidity and lighting integrated |
|||
